Introduction 介绍

The study of non-Hermitian Hamiltonians, which can be regarded as the effective description of dissipative processes, can be traced back to the investigation of alpha decay, where real and imaginary parts of the complex energy are related to the experimentally observed energy level and decay rate1. When a lattice system is coupled with environments and has dissipations, e.g. photonic crystals having radiational loss2,3,4 and electronic systems having finite quasiparticle lifetime5,6, the non-Hermitian band theory becomes a conceptually simple and efficient approach7,8,9,10,11,12.
非厄米哈密顿量的研究可以看作是耗散过程的有效描述,可以追溯到对α衰变的研究,其中复能量的实部和虚部与实验观测到的能级和衰变速率相关。当晶格系统与环境耦合并具有耗散时,例如具有辐射损耗的光子晶体和具有有限准粒子寿命的电子系统,非厄米带理论成为一个概念上简单而高效的方法。

Skin effect13,14,15,16,17,18,19,20,21,22,23, a phenomenon unique to the non-Hermitian band theory, refers to the localization of eigenstates at the boundary, the number of which scales with the volume of the system. For example, in one dimension, all eigenstates of a non-Hermitian Hamiltonian can be localized at the ends of a chain13. This suggests the failure of Bloch’s theorem24,25, which states that eigenstates in the bulk are modulated plane waves. As Bloch’s theorem plays a fundamental role in the development of condensed-matter physics26, the emergence of skin effect indicates a new and possibly revolutionary direction. Especially, the skin effect has been observed experimentally in one-dimensional classical systems27,28,29, inspiring further studies on their higher dimensional generalizations14,30,31,32,33,34,35,36,37. However, a general theory for the higher-dimensional skin effect has not been established.
皮肤效应是非厄米带理论独特的现象,指的是本征态在边界处的局域化,其数量与系统体积成比例。例如,在一维情况下,非厄米哈密顿量的所有本征态可以局域在链的两端。这表明了布洛赫定理的失败,该定理指出体内的本征态是调制的平面波。由于布洛赫定理在凝聚态物理的发展中起着基础性的作用,皮肤效应的出现表明了一种新的、可能是革命性的方向。特别是,在一维经典系统中已经实验观察到了皮肤效应,这激发了对其高维推广的进一步研究。然而,关于高维皮肤效应的一般理论尚未建立。

Apart from the skin effect, another focus topic in non-Hermitian band systems is the exceptional point (or line)38,39,40,41,42,43,44,45,46,47 that refers to stable point-type (or line-type) non-Hermitian band degeneracy in the Brillouin zone. At the exceptional point, not only eigenvalues but also eigenstates of the Bloch Hamiltonian coalesce39. Many a novel phenomenon related to exceptional points has been predicted and observed47,48,49,50,51,52, such as the emergence of bulk-Fermi arc terminated at the exceptional points5,45. Since the bulk-boundary correspondence plays a central role in the development of topological phases53, it is natural to ask if there exists a non-Hermitian bulk-boundary correspondence in bands having exceptional points, analogous to the surface Fermi arc in the Weyl semimetals in the Hermitian counterpart54.

In this paper, we establish a theorem that reveals a universal bulk-boundary correspondence in two and higher dimensional non-Hermitian bands, as shown in Fig. 1. The “bulk” refers to the area of the spectrum of the Hamiltonian on the complex plane with periodic boundary condition, and “boundary” means the presence (absence) of the skin effect for open-boundary system of a generic shape. The theorem states that the skin effect appears if and only if the spectral area is nonzero. This skin effect is “universal” for three reasons: (i) a randomly generated local non-Hermitian Hamiltonian has the skin effect with probability one; (ii) the skin effect is, unlike in one dimension, compatible with all point-group symmetries and time-reversal symmetry, including complex-conjugate-type and transpose-type time-reversal symmetry in ref. 11; and (iii) it does not require any special geometry of the open-boundary system. We classify the universal skin effect into non-reciprocal skin effect and generalized reciprocal skin effect according to nonzero and zero current functional, respectively, and also propose the corner-skin effect and geometry-dependent-skin effect as representative phenomena of these two categories.

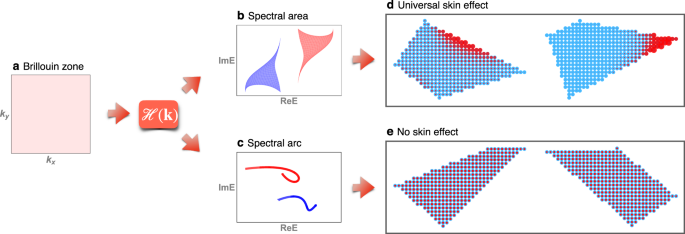

Fig. 1: The theorem of universal skin effect.
figure 1

a represents the Brillouin zone. b, d shows that if the spectral area of H(k) is nonzero, the skin effect will appear on some generic open-boundary geometries. c, e shows that when the spectral area of H(k) is zero, or forming one or several arcs on the complex plane, there is no skin effect under any geometry.

A surprising corollary of our theorem is that the stable exceptional points8,41,43 imply the presence of skin effect. Because exceptional points have been either observed or proposed in meta-materials as well as in condensed matter, this corollary makes skin effect observable in known systems. We predict the geometry-dependent skin effect in the two-dimensional photonic crystal studied in ref. 45, and propose to observe this effect in the anomalous dynamics of wave packets.

Results

Theorem: an equivalence between spectral area and skin effect

For generic one-dimensional non-Hermitian systems, the correspondence between the spectral shape and the skin effect has been derived17,18, i.e., when the Bloch spectrum is a loop-type (an arc-type), the skin effect appears (disappears).

Generalizing the correspondence to two dimensions, we note two main differences. One difference is in the periodic-boundary spectrum, Ei(k), where i is the band index and k the crystal momentum in the first Brillouin zone (BZ). Generally speaking, Ei(k) is a mapping from the d-dimensional torus to the complex plane, C. When d = 1, the image of Ei(k) forms a loop; but when d > 1, the image is generically a continuum on C, denoted by Ei(BZ). The area covered by Ei(BZ) on the complex plane is called the spectral area, denoted by Ai. Another difference is in the variety of open-boundary condition. There is only one geometry for an open system in one dimension, i.e., an open chain; but there are an infinite number of geometries in two dimensions such as triangle, rectangle and pentagon.

Now we are ready to state the theorem of universal skin effect: in the thermodynamic limit, the skin effect is present in a Hamiltonian having open boundary of generic geometry, if the spectral area is nonzero (Ai ≠ 0); vice versa, the skin effect is absent for all possible geometries, if the spectral area is zero (Ai = 0). The open boundary in the theorem refers to the fully open boundary condition in all spatial directions. As the periodic-boundary Hamiltonian describes the dynamics in the bulk, the theorem relates a bulk property (spectral area) to a boundary one (existence of skin modes). Fig. 1 shows some schematic examples. The complete proof of the theorem is provided in the Supplementary Note 1.

A brief outline of the proof is illustrated in Fig. 2. The theorem is obtained in three steps: step I establishes the equivalence relation between spectral area and spectral winding number of straight lines in the BZ; step II connects these nonzero spectral winding numbers with skin effect on the stripe geometry — the geometry with open boundary in only one direction and periodic boundary in other directions; step III illustrates that skin effect on stripe geometry implies skin effect on fully open-boundary geometry (i.e., the universal skin effect), which relies on a conjecture. The justification of this conjecture is discussed in the Supplementary Note 1.

Fig. 2: The sketch of the proof of the theorem.
figure 2

The first step connects the nonzero spectral area and nonzero spectral winding number along some direction in the BZ. The latter means the Hamiltonian exhibits the skin effect under the corresponding stripe geometry, which is proved in the second step. The skin effect on stripe geometry further reveals the universal skin effect, relying on a conjecture in the third step.

The above theorem has implied the universality of skin effect in two and higher dimensions. As Ei(BZ) is the image of the d ≥ 2-dimensional torus on the complex plane, it takes fine tuning of parameters to make Ai = 0 for every i. In fact, for single-band Hamiltonian, we can prove that A = 0 if and only if H(k)=P[h(k)], where h(k) is a Hermitian Hamiltonian and P is a complex polynomial (see Supplementary Note 1). In other words, a randomly generated non-Hermitian Hamiltonian H(k) has skin effect: the first meaning of universality. In previous studies, other types of skin effect, such as the line-skin and the high-order-skin effect, in two and higher dimensions have been proposed30,34. These types all require the open-boundary system take a special geometry (usually a rectangle) and are hence considered special and non-generic. Additionally, the number of skin modes in the universal skin effect follows a volume law, which differentiates from the higher-order-skin effect. The skin effect when Ai ≠ 0 assumes a completely generic geometry of boundary: the second meaning of universality. The third meaning of universality lies in the fact that the higher-dimensional skin effect is compatible with all point-group symmetries, i.e., the universal skin effect can appear if and only if the spectral area is nonzero, regardless of the point-group symmetry of the bulk Hamiltonian. While in one dimension, if the bulk Hamiltonian only respects, for example, the inversion symmetry, the periodic-boundary energy spectrum has an arc-form on the complex plane, which means the absence of non-Hermitian skin effect11,23. A standing wave explanation for the theorem is provided in the Supplementary Note 2.

The corner-skin and the geometry-dependent-skin effect

While the theorem shows that the skin effect is universal, it does not specify what skin modes look like in higher dimensions. Here, we define the current functional, which partitions the universal skin effect into non-reciprocal skin effect and generalized reciprocal skin effect. Then we report the representative phenomena in these two types, i.e., the corner-skin effect (CSE) and the geometry-dependent skin effect (GDSE), respectively.

The current functional is defined as

Jα[n]=iBZdkdn(Ei,Ei)αEi(k)
(1)

under the periodic-boundary condition, where i is the energy band index and α indicates the directional derivative along certain direction α in d-dimensional momentum space. Here, n(E, E*) represents a distribution function when the system reaches to a steady state and only depends explicitly on the energy of the system state17. The nonzero current functional (labeled by J ≠ 0) is defined as: α, n,   Jα[n] ≠ 0; and as a complementary set, the zero current functional (labeled by J = 0) is defined as: α, n,   Jα[n] = 0. By definition, the nonzero current functional and zero current functional are complete and mutually exclusive mathematically. Therefore, we can classify the universal skin effect (nonzero spectral area) into two types according to the current functional, i.e., the non-reciprocal skin effect (J ≠ 0) and generalized reciprocal skin effect (J = 0), as illustrated in Fig. 3. Note that this classification of skin effect according to the current functional is different from the classification of intrinsic point-gap topology for symmetry class11,18 (see Supplementary Note 3). The current functional is shown to vanish in two and three dimensions under point groups Ci, D2,3,4,6, C2h,3h,4h,6h, D2d,3d,2h,3h,4h,6h, T, Td,h, O and Oh. Therefore, the non-reciprocal skin effect is only compatible with point groups Cm and C2,3,4,6,2v,3v,4v,6v. As a comparison, the generalized reciprocal skin effect is compatible with all point-group symmetries (see also Supplementary Note 3).

Fig. 3: The corner-skin effect and the geometry-dependent-skin effect.
figure 3

The universal skin effect can be further classified into two types by the current functional, that is, non-reciprocal skin effect ( α, n,   Jα[n] ≠ 0) and generalized reciprocal skin effect ( α, n,   Jα[n] = 0). CSE (a)–(d) and GDSE (e)-(h) are representatives of these two types of skin effects, respectively. In (a, b, e, f), the light blue regions represent the spectrum under periodic boundary, where 200*200 k-grid is used, and the red points represent the eigenvalues under different open-boundary geometries. The system size under square geometry in (c, g) is Lx × Ly = 60 × 60, and each triangle geometry in (d, h) has the same right-angled side length Lx = Ly = 60. The spatial distributions of eigenstates W(x) are plotted in (c, d, g, h) with the color bars. In the system with GDSE, the skin effect disappears under square geometry (geometry 1) in (g), and reappears under triangle geometry (geometry 2) in (h).

We define the CSE as a type of the non-reciprocal skin effect (J ≠ 0) that exhibits the particular phenomenon that almost all eigenstates are localized at corners of the open-boundary geometry. The Hamiltonian of the example for CSE is

H(k)=[5(coskx+cos2kx)i(sinkx+3sin2kx)+5cosky+isinky]/2,
(2)

of which the spectral area under square geometry and triangle geometry is shown in Fig. 3(a, b) with light blue color. Because of the nonzero spectral area, the theorem tells us that the Hamiltonian must have the universal skin effect. This is verified in Fig. 3(c, d), where the spatial distributions of all eigenstates W(x)=1Nn|ψn(x)|2 under different open boundaries are plotted. Here ψn(x) is a normalized right eigenstate and N is the number of these eigenstates. It is found that the wave functions are always localized at the corner of the boundary in Fig. 3(c), even if the open-boundary geometry is changed in Fig. 3(d). We elaborate on the localization of eigenstates for this example in the Supplementary Note 4. We also plot the corresponding eigenvalue spectra under different open boundaries, as shown in Fig. 3(a, b) with red color. One can notice that the spectral areas under periodic and open boundaries do not equal. The CSE is a representative one of non-reciprocal skin effect and inherits its features, including nonzero current functional and incompatibility with certain point-group symmetries.

Similar to the definition of CSE, the GDSE is one type of generalized reciprocal skin effect (J = 0) showing the unique phenomenon that there is at least one fully open boundary geometry under which the skin effect does not appear. The Hamiltonian of the example for GDSE reads

H(k)=2coskx+icosky.
(3)

Since the spectral area is nonzero, our theorem tells us that the system must have skin effect for certain open-boundary geometry, such as a random polygon. However, an interesting phenomenon in this example is that the skin effect disappears under the square geometry due to the existence of two mirror symmetries shown in Fig. 3(g). Once we choose other types of boundaries where mirror symmetries are broken, the skin effect reappears as shown in Fig. 3(h). Since the appearance of the skin effect and the localization position depend on the geometry, it is called the GDSE. In one dimension, an open chain does not exhibit skin effect when its spectrum coincides with the corresponding periodic-boundary spectrum on the complex plane. Unlike in one dimension, even if the region covered by the energy spectrum under some open-boundary geometry (such as the triangle geometry in Fig. 3(h)) seems to be the same as the region covered by the periodic-boundary spectrum, the system can still show a skin effect due to the different density of states on the complex plane. It is also a unique feature in two- and higher-dimensional skin effects. In the Supplementary Note 4, we provide some numerical results to illuminate this new type of skin effect and discuss the localization of eigenstates on the open-boundary geometry. In addition, we show that GDSE follows the volume law, i.e., the increase in the number of skin modes is proportional to the increase in the system volume. For GDSE, there is at least one spatial geometry such that skin modes vanish, and as such is mutually exclusive with CSE. Additionally, GDSE is compatible with all point groups, in contrast to CSE.

Corollary: skin effect from exceptional points

An immediate corollary of our theorem is that all lattice Hamiltonians with stable exceptional points have universal skin effect, connecting two unique phenomena in the non-Hermitian band theory. This connection has also been discussed in ref. 31, where the bands around the stable exceptional point form a point gap with nonzero spectral winding number, consequently, exhibiting the skin effect under an open-boundary geometry. Consider a stable exceptional point k0 in two dimensions. Due to the branch point structure of exceptional point, the dispersion around k0 can be expressed as8E±(k)=±c0qx+c1qy+O(|kk0|), where qi=x,y denotes a small derivation from exceptional point in x or y direction, that is, qi = ki − k0i. Here c0, c1 are nonzero complex numbers and the stable exceptional point ensures the nonzero imaginary part of c1. Suppose the range of the expansion is r0, then it is clear that A±|c0|πr02/20. By the theorem, the system must have universal skin effect (see Supplementary Note 5).

Now we use the photonic crystal model that has been experimentally realized in ref. 45 to demonstrate our corollary. The tight-binding model Hamiltonian with periodic boundary can be written as

H(k)=d(k)σiγ/2(σ0σz),
(4)

where σ = (σ0, σx, σy, σz) is a vector of the Pauli matrices and d(k) is a vector with four components, that is, d(k)={μ0(t2+t3)(coskx+cosky),t1[1coskxcosky+cos(kxky)],t1[sinkxsinkysin(kxky)],μz+(t2t3)(coskxcosky)}. The parameters are chosen as follows, (t1, t2, t3, μ0, μz) = (0.4, − 0.1, 0.5, 1.35, − 0.02). As shown in Fig. 4(a), in the Hermitian limit, i.e. γ = 0, the system has two Dirac points along the x-axis. When external dissipation or radiational loss is added, i.e., γ ≠ 0, each Dirac point splits into two exceptional points shown in Fig. 4(b), connected by the bulk Fermi arc. According to our theorem, the system must have the universal skin effect, more precisely, the GDSE. Specifically, the skin effect disappears under square geometry but reappears under diamond geometry, which is verified in the Supplementary Note 6.

Fig. 4: The photonic crystal model with exceptional points and Weyl semimetal with exceptional lines.
figure 4

Two Dirac points (a) of a two-dimensional photonic crystal model are split into four exceptional points (b) upon adding non-Hermitian term, such as radiational loss. Correspondingly, the evolution of Gaussian wave packet with initial velocity at the center of a diamond geometry for each ten time intervals is shown in (c) with γ = 0 (Hermitian) and (d) with γ = 1/4 (GDSE). Two Weyl points (e) of a three-dimensional Weyl semimetal are expanded into two exceptional rings (f) after the addition of non-Hermitian perturbations. The spatial distribution of eigenstates, i.e. W(x), is plotted in (g). The modulus square of the propagator from i to oPio(ω) and that from o to iPoi(ω), as functions of ω, are plotted with red color and dark cyan color in (h), respectively.

So far, we have shown the features of the energy spectrum and wave function in the system with GDSE. We expect some observable phenomena from the skin effect, which motivates us to examine the dynamical properties for the photonic crystal model in Eq.(4). In order to show this, we simulate the time evolution of the wave packet starting at the center of the diamond geometry with an initial velocity perpendicular to one edge. Here the initial state is chosen to be Gaussian form |ψ0=Nexp[(xx0)2/10(yy0)2/10i2xi2y](1,1)T, where N is the normalization factor and x0 = y0 = 21 is the center coordinate of the diamond geometry. We plot the corresponding spatial distribution of normalized final states |ψ(tf)=N(tf)eiHOBCtf|ψ0 for every ten time intervals, where HOBC represents the open-boundary Hamiltonian on the diamond geometry. As shown in Fig. 4(c), in the Hermitian case, the center of the wave packets obeys the simple law of reflection: the center of the wave packet just bounces between the two edges while slowly dispersing with time. However, in the non-Hermitian case (γ = 1/4) with GDSE, after several oscillations between two edges, the wave packet makes a side jump into the upper left corner as shown in Fig. 4(d). The transverse motion of the wave packet induced by skin effect is explained in more detail in the Supplementary Note 6. This anomalous dynamical behavior is an experimental signature of GDSE.
到目前为止,我们已经展示了具有GDSE的系统中能谱和波函数的特征。我们期望从皮肤效应中观察到一些可观察的现象,这促使我们研究方程(4)中的光子晶体模型的动态特性。为了展示这一点,我们模拟了波包在钻石几何形状中心以垂直于一条边的初始速度开始的时间演化。这里选择的初始态取为高斯形式 |ψ0=Nexp[(xx0)2/10(yy0)2/10i2xi2y](1,1)T ,其中 N 是归一化因子,x 0 = y 0 = 21是钻石几何形状的中心坐标。我们绘制了每十个时间间隔的归一化最终状态的空间分布,其中 HOBC 表示钻石几何上的开边界哈密顿量。正如图4(c)所示,在厄米情况下,波包的中心遵循简单的反射规律:波包的中心在两个边界之间来回弹跳,同时随时间缓慢扩散。 然而,在非厄米情况下(γ = 1/4),通过GDSE,波包在两个边缘之间多次振荡后,如图4(d)所示,会侧跳到左上角。波包的横向运动由皮肤效应引起,详细解释见附注6。这种异常的动态行为是GDSE的实验特征。

We also propose the realization for CSE in a three-dimensional system with exceptional lines. Consider a Weyl semimetal with non-Hermitian term as a perturbation, of which the periodic-boundary Hamiltonian reads
我们还提出了在具有异常线的三维系统中实现CSE的方法。考虑一个具有非厄米项的Weyl半金属作为扰动,其周期边界哈密顿量如下:

H(k)=[dr(k)+iδdi(k)]σ,
(5)

where dr(k) and di(k) are vectors with four components, that is, dr(k)=(0,sinkx,sinky,2coskxcosky+sinkz) and di(k)=(5,1+coskz,1coskz,coskz). The Hermitian part drσ is a Weyl semimetal possessing two Weyl points, the red cone at (0, 0, 0) and blue cone at (0, 0, π) shown in Fig. 4(e). Upon turning on the non-Hermitian term, the Weyl points evolve into two exceptional rings in Fig. 4(f). Consequently, the system exhibits the CSE with δ = 1/6 shown in Fig. 4(g), as a numerical verification of our corollary.
当d r (k)和d(k)是具有四个分量的向量时,即 dr(k)=(0,sinkx,sinky,2coskxcosky+sinkz) di(k)=(5,1+coskz,1coskz,coskz) 。共轭部分d r ⋅ σ是一个具有两个Weyl点的Weyl半金属,红色圆锥位于(0, 0, 0),蓝色圆锥位于(0, 0, π),如图4(e)所示。打开非共轭项后,Weyl点演化为图4(f)中的两个例外环。因此,系统展示了图4(g)中δ = 1/6的CSE,作为我们推论的数值验证。

Experimentally, the non-reciprocity of the CSE can be detected by the two-point Green’s function. The modulus square of the propagator from i = (1, 1, 1) to o = (16, 16, 16) is expressed as Poi(ω)=α,β|o,β|1ωH^|i,α|2, where α, β label the orbitals of the unit cell. We calculate Poi(ω) and Pio(ω) in Fig. 4(h), where a significant difference between them demonstrates the non-reciprocity of CSE.
实验上,可以通过两点格林函数来检测CSE的非互易性。从i = (1, 1, 1)到o = (16, 16, 16)的传播子的模方可以表示为 Poi(ω)=α,β|o,β|1ωH^|i,α|2 ,其中α,β标记了单元格的轨道。我们在图4(h)中计算了P oi (ω)和P io (ω),它们之间的显著差异表明了CSE的非互易性。

Discussion 讨论

Our work has built a bridge between two distinct phenomena that only exist in non-Hermitian systems, i.e., the exceptional points (lines) and the non-Hermitian skin effect, by establishing the correspondence between bulk (spectral area) and boundary (universal skin effect). We prove that the skin effect is universal and compatible with all point-group symmetries and time-reversal symmetry in two and higher dimensions. Due to the universality, it is expected that the skin effect is observable in a wide range of platforms, such as photonic crystals with natural radiational loss, acoustic meta-materials and circuit networks with lossy components such as resistors. Beyond these classical systems, the skin effect can also be realized in condensed matter, e.g., the heavy-fermion material with finite quasiparticle lifetime and the Weyl-exceptional-ring semimetal. The latter is realizable in Weyl semimetals made from inverting bands that have disparate effective masses, such as d- and f-bands.
我们的工作在两个仅存在于非厄米系统中的不同现象之间建立了一座桥梁,即例外点(线)和非厄米皮肤效应,通过建立体积(谱区域)和边界(通用皮肤效应)之间的对应关系。我们证明了皮肤效应是通用的,并且与所有点群对称性和时间反演对称性在二维及更高维度上兼容。由于其通用性,预计皮肤效应可以在各种平台上观察到,例如具有自然辐射损耗的光子晶体、具有损耗元件(如电阻器)的声学超材料和电路网络。除了这些经典系统外,皮肤效应还可以在凝聚态物质中实现,例如具有有限准粒子寿命的重费米子材料和韦尔-例外-环半金属。后者可以在由具有不同有效质量的反转带构成的韦尔半金属中实现,例如d-和f-带。

One should be reminded, however, that the results in this paper assume the coherent dynamics of the constituent degrees of freedom, which is unlikely the case in macroscopic condensed-matter systems where the coherence length is shorter than the system size. On the contrary, for the systems where the system size and the coherent length are comparable, as in mesoscopic systems, we believe that the universal skin effect has a significant contribution to the transport properties, a subject for future exploration.
然而,需要提醒的是,本文的结果假设组成自由度的相干动力学,而在宏观凝聚态系统中,相干长度较系统尺寸短的情况是不太可能的。相反,对于系统尺寸和相干长度相当的介观系统,我们相信普适的皮肤效应对输运性质有重要贡献,这是一个需要进一步探索的课题。
