用途及特点:

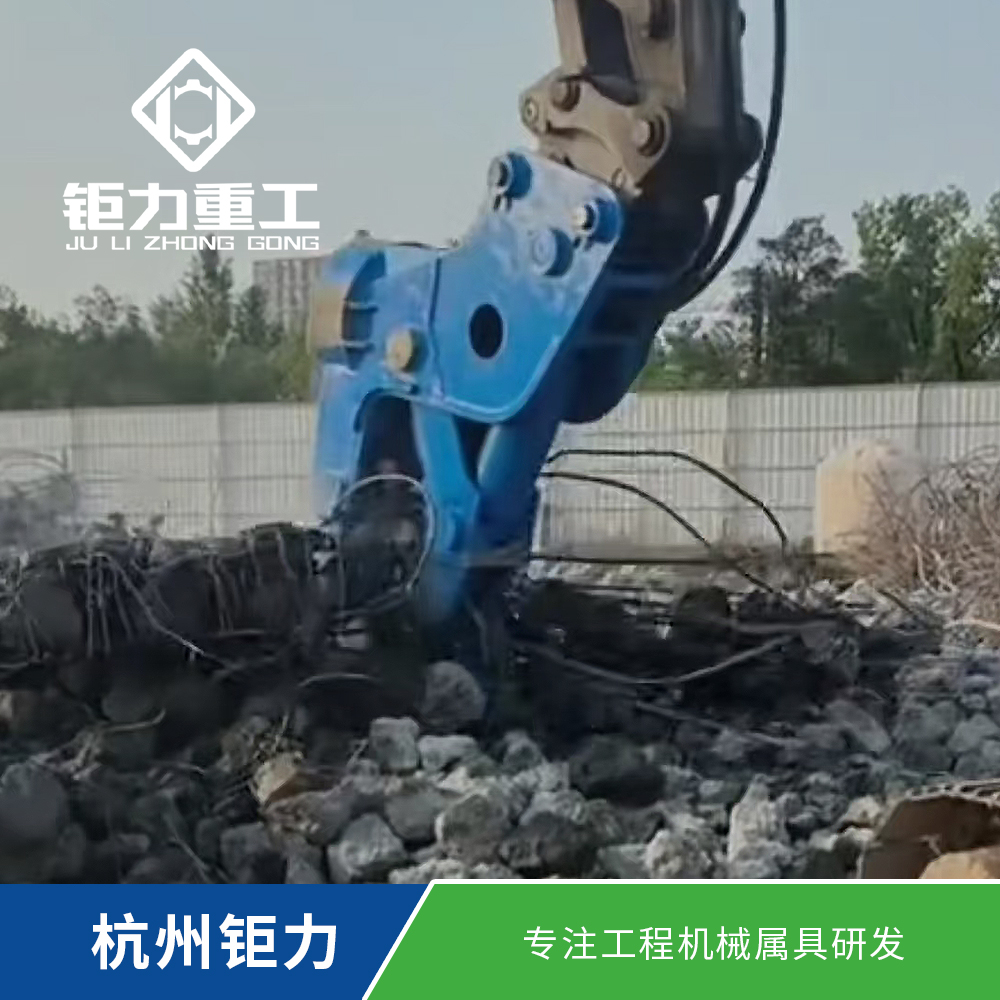

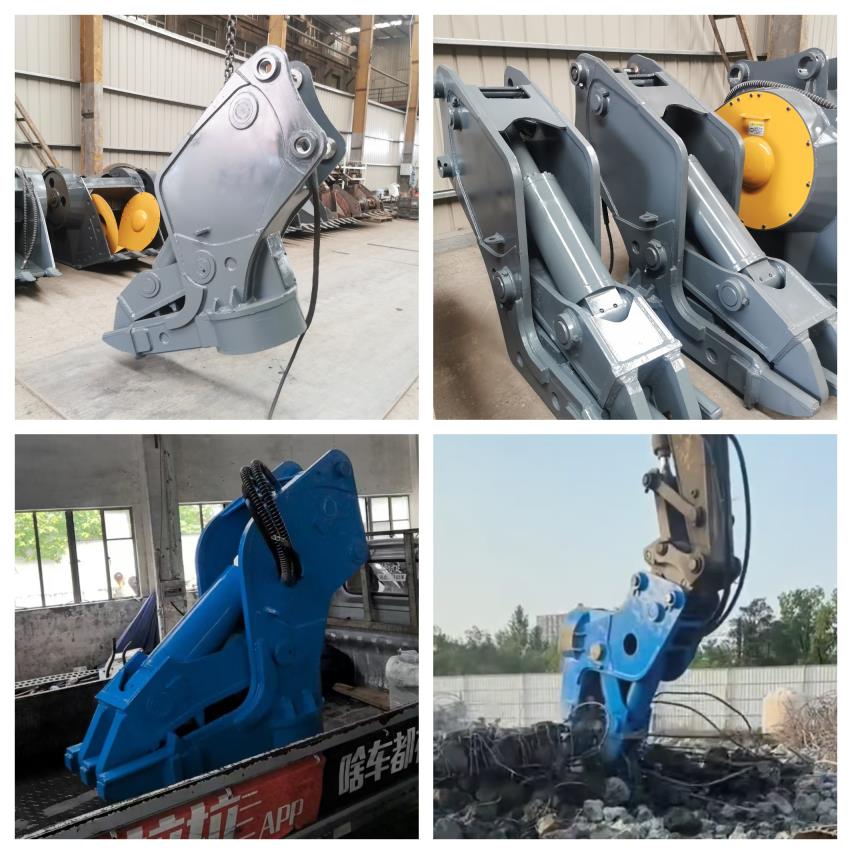

液压粉碎钳是完美的二次破拆设备,可以有效的使混泥土和钢筋分离。JHC系列液压粉碎钳使用质优耐磨钢材,利用品质高性能的液压油缸,满足不同工况的需求。
强度牙齿直接粉碎各种标号混泥土,从而使钢筋有效分离出来,并且可以将钢筋剪短,直接将钢筋打成团后直接装车。该粉碎钳安装方便快捷,配合破碎锤使用可以极大提高拆迁工作效率。
参数表:
型号 | 适配挖机重量 (吨) | 重量 (千克) | 总长度 (毫米) | 开口宽度 (毫米) | 破碎力 (千牛) | 最大压力 (兆帕) |
JHC-150 | 12-18 | 1200 | 1500 | 600 | 60 | 32 |
JHC-200 | 18-25 | 1820 | 1800 | 900 | 80 | 34 |
JHC-300 | 25-35 | 2100 | 1950 | 1075 | 100 | 34 |
Uses and features:
Hydraulic pulverizers are the perfect secondary demolition equipment, which can effectively separate the concrete from the rebar. JHC series hydraulic pulverizers use high-quality wear-resistant steel and high-quality hydraulic cylinders to meet the needs of different working conditions.
The strength teeth directly crush all kinds of grade concrete, so that the steel bars can be effectively separated, and the steel bars can be cut short, and the steel bars can be directly loaded after being directly beaten into balls. The crushing pliers are easy to install and quick, and the use of the crushing hammer can greatly improve the efficiency of demolition.
Parameter Table:
Model | Adapts to the weight of the excavator (t) | weight (kg) | Overall length (mm) | Opening width (mm) | Crushing force (kN) | Maximum pressure (MPa) |
JHC-150 | 12-18 | 1200 | 1500 | 600 | 60 | 32 |
JHC-200 | 18-25 | 1820 | 1800 | 900 | 80 | 34 |
JHC-300 | 25-35 | 2100 | 1950 | 1075 | 100 | 34 |
