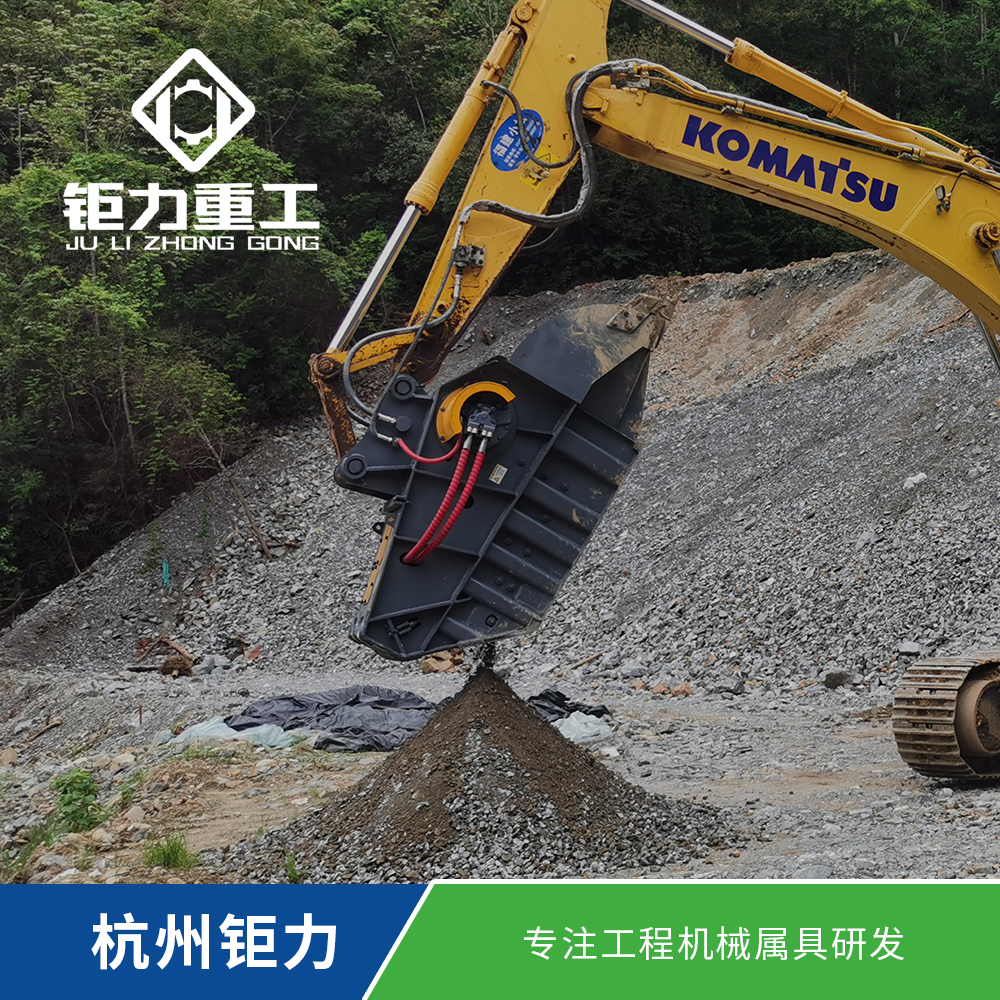

产品介绍:
a、借助挖机底盘的液压动力和挖机本身的动作功能实现该破碎斗自己装料、自己破碎的功能。
b、中速大扭矩液压马达直接驱动。
产品特点:
a、通过挖机“双泵合流”改装后破碎效果可以提升1.5-2倍。
b、中速大扭矩马达直接驱动,动力更强劲。
c、节能环保、减少运输成本、就地取才、就地破碎。
D、可以破碎水泥块、建筑垃圾、鹅卵石、青石、玄武石、矿石等多种石料。
应用范围:
特别适用于物料的就地破碎。
a、适用领域广:拆除工地、建筑工地、工业区和市政区规划、挖掘材料处理、土木工程、道路作业、采矿、矿山、制沙场等多种场合使用。
b、可以破碎混泥土块、鹅卵石、青石、玄武石等多种物料。
c、出料大小15-120mm可调。
表格参数:
型号 | JP-120 | JP-200 | JP-300 | JP-400 |
适配挖机型号(吨) | 10-15 | 20-25 | 30-35 | 40-45 |
挖斗容量(立方) | 0.5 | 0.9 | 1.3 | 1.6 |
工作压力(兆帕) | 15 | 15 | 15 | 15 |
更高压力(兆帕) | 25 | 25 | 25 | 25 |
流量(升/分钟) | 90 | 150 | 230 | 260 |
进料口尺寸宽x高(毫米) | 550X450 | 700X600 | 900X700 | 1100X700 |
排料口调整范围(毫米) | 15-120 | 15-120 | 15-120 | 15-120 |
外形尺寸(毫米) | 1850x1080x1300 | 2580x1380x1550 | 3120x1665x1770 | 3120x2010x1840 |
重量(千克) | 1800 | 3000 | 4500 | 5200 |

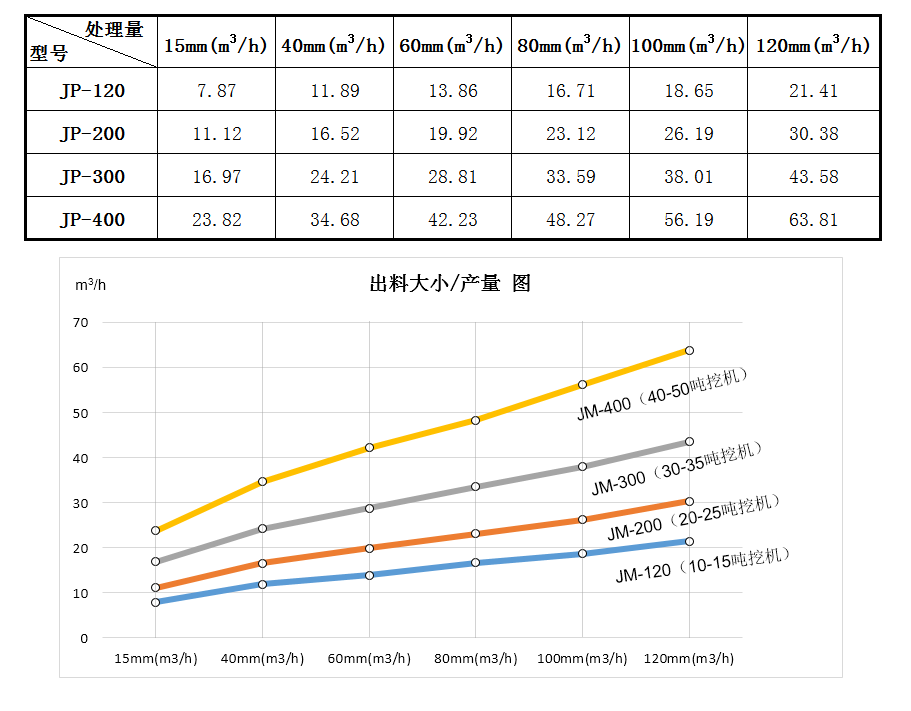

处理量参考图:
Product Introduction:
a. With the help of the hydraulic power of the excavator chassis and the action function of the excavator itself, the crushing bucket can be loaded and crushed by itself.
b. Direct drive of medium-speed and high-torque hydraulic motor.
Features:
a. The crushing effect can be increased by 1.5-2 times after the modification of the excavator's "double pump confluence".
b. Medium-speed and high-torque motor is directly driven, and the power is stronger.
c. Energy saving and environmental protection, reducing transportation costs, picking talents on the spot, and crushing on the spot.
D. It can crush cement blocks, construction waste, pebbles, bluestone, basalt, ore and other stones.
Applications:
It is especially suitable for in-situ crushing of materials.
a. Wide range of applications: demolition sites, construction sites, industrial and municipal planning, excavation material processing, civil engineering, road operations, mining, mining, sand making and other occasions.
b. It can crush concrete blocks, pebbles, bluestone, basalt and other materials.
c. The discharge size is 15-120mm, which is adjustable.
Table Parameters:
Model | JP-120 | JP-200 | JP-300 | JP-400 |
Applicable excavator model (tons) | 10-15 | 20-25 | 30-35 | 40-45 |
Bucket capacity (cubic) | 0.5 | 0.9 | 1.3 | 1.6 |
Working pressure (MPa) | 15 | 15 | 15 | 15 |
Higher pressures (MPa) | 25 | 25 | 25 | 25 |
Flow rate (l/min) | 90 | 150 | 230 | 260 |
Inlet size width x height (mm) | 550X450 | 700X600 | 900X700 | 1100X700 |
Discharge opening adjustment range (mm) | 15-120 | 15-120 | 15-120 | 15-120 |
Dimensions (mm) | 1850x1080x1300 | 2580x1380x1550 | 3120x1665x1770 | 3120x2010x1840 |
Weight (kg) | 1800 | 3000 | 4500 | 5200 |
Throughput reference chart:
