产品介绍:
a、借助挖机底盘的液压动力和挖机本身的动作功能实现该筛分斗自己装料、自己筛分的功能。
b、液压马达直接驱动滚筒旋转,筛分物料。
产品特点:
a、可以根据筛分物料的大小尺寸,快速更换筛网。
b、现场筛分,运营成本低,占用的空间小,所需的时间少
应用范围:

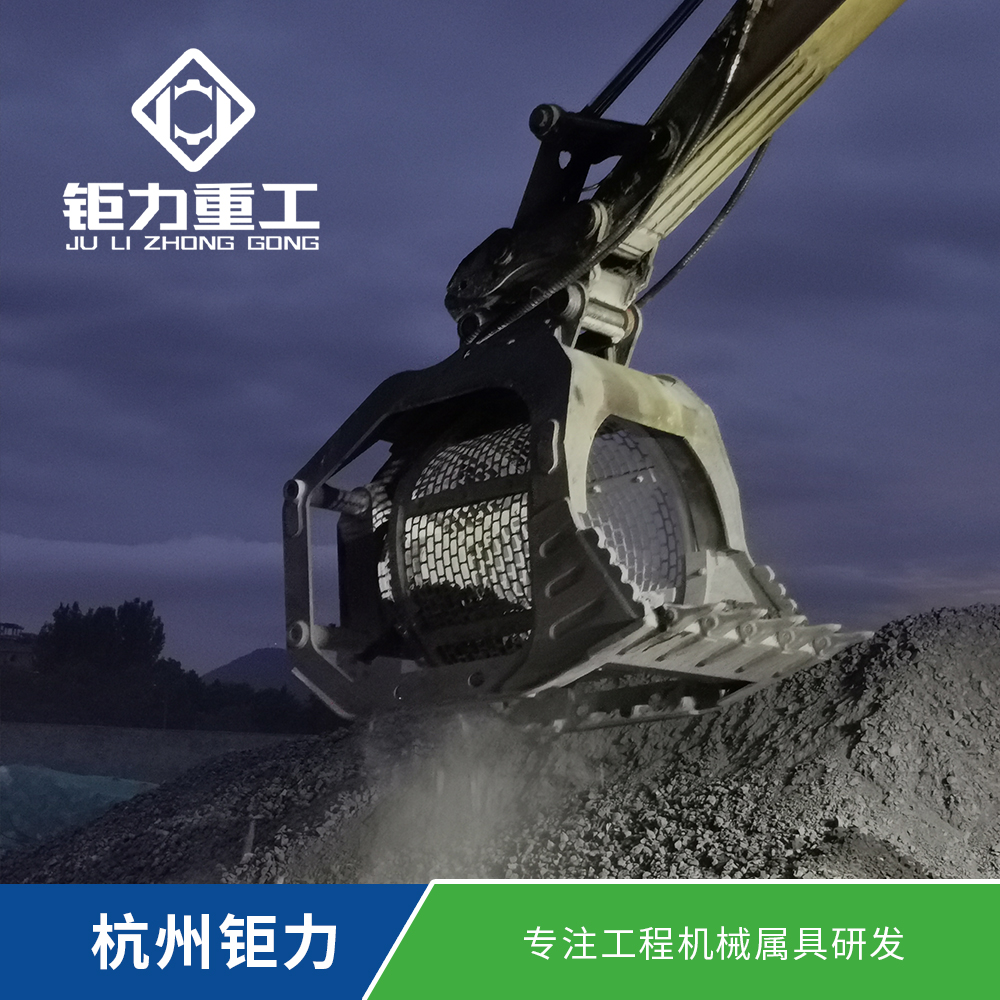

a、特别适用于物料的就地筛分。
b、适用领域广:混合料的筛分、沟渠和管道铺设回填、洗沙、河道中砾石的筛洗、土壤的改良、沙滩清洗。
c、可根据具体筛选物料大小定制筛网大小。
表格参数:
型号 | 适配挖机型号 (吨) | 挖斗容量 (立方) | 外形尺寸 (毫米) | 工作压力 (兆帕) | 更高压力 (兆帕) | 液压流量 (升/分钟) | 重量 (千克) |
JDS-30 | 6-10 | 0.4 | 1300X800X1100 | 17 | 25 | 40 | 450 |
JDS-150 | 15-20 | 0.8 | 1700X1100X1400 | 17 | 25 | 60 | 1200 |
JDS-200 | 20-30 | 1.6 | 2000X1350X1750 | 17 | 25 | 70 | 2000 |
JDS-300 | 30-35 | 2.4 | 2400X1900X2500 | 17 | 25 | 90 | 2800 |
Product Introduction:
a. With the help of the hydraulic power of the excavator chassis and the action function of the excavator itself, the screening bucket can be charged and screened by itself.
b. The hydraulic motor directly drives the drum to rotate and screen the materials.
Features:
a. The screen can be quickly replaced according to the size of the screening material.
b. On-site screening, low operating cost, small space occupation, less time required
Applications:
a. It is especially suitable for on-site screening of materials.
b. Wide range of applications: mixing screening, ditch and pipeline laying backfilling, sand washing, screening of gravel in the river, soil improvement, beach cleaning.
c. The size of the screen can be customized according to the size of the specific screening material.
Table Parameters:
Model | Suitable for excavator models (t) | Bucket capacity (Cu3) | Dimensions (mm) | Work pressure (MPa) | Higher pressure (MPa) | Hydraulic flow (l/min) | weight (kg) |
JDS-30 | 6-10 | 0.4 | 1300X800X1100 | 17 | 25 | 40 | 450 |
JDS-150 | 15-20 | 0.8 | 1700X1100X1400 | 17 | 25 | 60 | 1200 |
JDS-200 | 20-30 | 1.6 | 2000X1350X1750 | 17 | 25 | 70 | 2000 |
JDS-300 | 30-35 | 2.4 | 2400X1900X2500 | 17 | 25 | 90 | 2800 |
